Automatic Chronographs


The Vintage Citizen Automatic Chronographs

Specifications:

Citizen produced two types of automatic mechanical chronographs, both launched in 1972 – the 8100A and the 8110A. Although named ‘A’ there are no other designations to this movement. The movements are compact in size and are all high beat, running at 28,800 beats per hour. They are well specified, featuring hand winding and ‘fly back’ – which allows the wearer to zero the chronograph whilst it’s running, rather than having to stop it first, then restart. This permits instant stop and re-start of the chronograph function.



The compact design of the movement allowed smaller casing, so they tend to be smaller and lighter than, for example, the Seiko chronographs of that period. I understand that the nature of the design results in it being harder to work on when servicing or repairing. Both movements are 27.00mm wide. The 8100A is 5.82mm deep, whilst the 8110A is 6.72mm.

Essentially the movements are the same, with each respectively featuring one sub-dial (the 8100A), the other (the 8110A) having two. The chronograph functions are as follows:

  • seconds counter – full sweep hand (both types)
  • minutes counter – sub-dial one (both types)
  • hours counter – sub-dial two (8110A only)

The chronograph is started and stopped by pressing the button positioned at 2 o’clock or 11 o’clock depending on model, and is reset by pressing the button at 4 o’clock or 1 o’clock again depending on the model. Pressing the reset button without first stopping the chronograph enables instant restart from zero (‘fly back’).

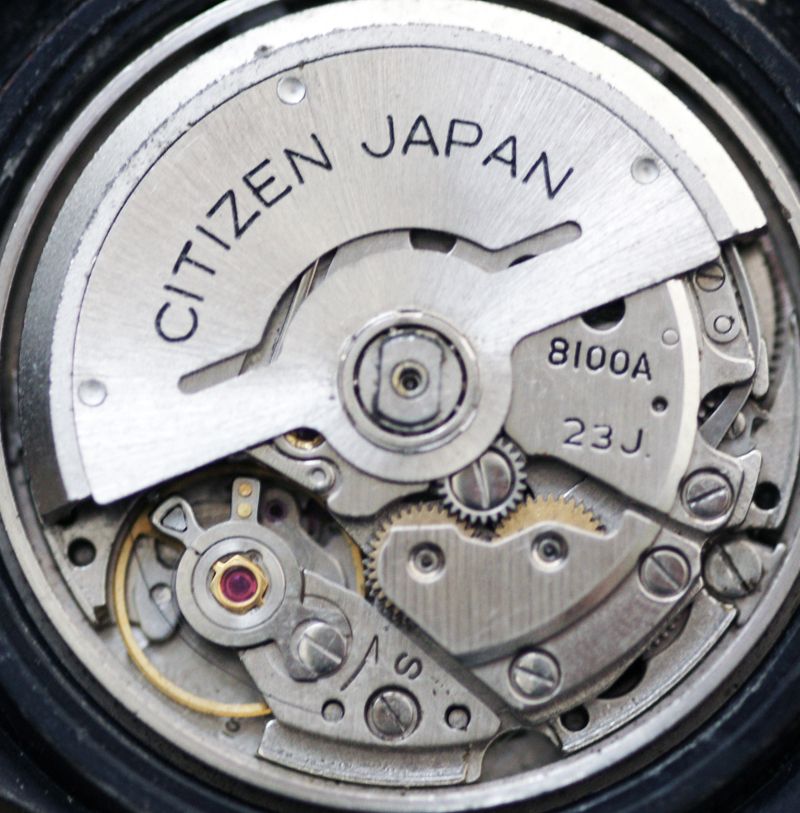

All models have 23 jewels and the column wheel/vertical clutch design of the movement means that it is advised to leave the chronograph function running to minimise wear – this of course happily results in the seconds counter running continuously as would be the case in a non-chronograph piece. However, it’s also worth noting that leaving the chronograph running all the time could result in the clutch parts seizing together, so it is advised that sometimes the watch should be run with the chronograph stopped.

These movements have quick setting mechanisms for date and day. Both are set when the crown is pulled out one click – the date by rotating the crown, the day by pressing the reset button.

Model Range:

I’ve attempted to identify all the models in the chronograph line-up, but in the absence of authoritative historical documents there may be gaps in this summary – hopefully over time these can be filled. So far I have found 12 types of 8110A (plus one titanium cased special edition) and four types of 8100A.

Some models are considerably harder to find than others whilst the most well-known model, for which there is a ready supply of after market dials and hand sets, is the ‘bullhead’ type. Properly called the ‘Challenge Timer’ I believe this 8110A model had the longest production run, and certainly reached 1980. It was also nick-named the ‘Easter Rabbit’. These have been the hardest models to reach conclusions about, bearing in mind the many examples with after market dials and the greater number of original variants, so I have included only those models which I am confident are originals.

Most models have an associated model number, all in the form ’67-9xxx’, whilst I have found two that have a case number only, i.e. 4-90xxxx. The 8110A models all have case numbers as per 4-901xxx, whislt 8100A models have case numbers as per 4-900xxx. With the advent of new materials at the time, a good number of Citizen’s chronographs have black coated cases or bezels alongside the more conventional stainless steel, base metal and gold plate. It’s always worth checking that the case material code on the case back matches the rest of the watch, and please note that base metal cases carry the code ‘SS’.

Although I provide the case material code, not all models have the code stamped on the case back. See also the notes against the specific models, which include dial codes where I have been able to identify them, whilst I hope that the images adequately show the colour of the main and chronograph hands and other details. I’ll be covering original bracelets/bands separately.

Citizen used a radioactive lume on some dials, although there doesn’t appear to be any logical pattern to this, since the same model can either have this type or a non-radioactive lume. This would seem not to be a major concern now since Citizen only used Promethium which is a low energy beta emitter with a half-life of only 2.6 years. Dials with Promethium lume can be  identified since they are not simply signed ‘JAPAN’, but are signed ‘P-JAPAN-P’. I am grateful to ‘Mikko’ who researched this issue and let me have this information. Here’s an example of the dial text on my 67-9119 model:

To illustrate the various models here I have used my own collection, web links to other models, and images from Japanese auctions and the internet, for which I wish to give due credit. You’ll find attribution for specific images in the text where relevant. I also want to acknowledge Citizen for the images I’ve used from their original catalogs and technical manuals.  If I have used one of your photos please let me know so I can attribute it, or remove if preferred. Here is a pdf file of an original Citizen booklet on the 8100 and 8110 chronographs, which includes setting instructions:

CitizenChronographBooklet

The 8110A’s:

4-901096 Case Number – 4-901096 (Challenge Timer)       (NB – no model number given to this model)



Case Material: BLS (black case, stainless steel bezel)

Dial Colour: Green, black sub-dials, black date & day wheels

Dial Code: 901166

Marked ’23 Jewels’

NB – possible variant, not yet able to verify, case  / model numbers not known:

_____________________________________________________________

67-9011 Case Numbers – see a,b & c (Challenge Timer) Case Material: SSB (base metal case, black bezel)

Marked ’23 Jewels’

Dial Colours:

a) Silver, black sub-dials, black date & day wheels, black inner tachymeter ring, case numbers 4-901177 & 4-901053, dial code 901018

b) Silver, black sub-dials with multi-colour markers, black date & day wheels, silver inner tachymeter ring with 5 minute markers, case number 4-901011, dial code 901069

c) Dial Colours:  Black or Grey, black or grey sub-dials with multi-colour markers on minute sub-dial, black date & day wheels, printed Citizen logo, case number 4-901177, dial code 901051 (image of  Grey model courtesy of ‘ JAY48’ and ‘total_time22’)

Here are images from Citizen:



And one from the series of Japanese domestic watch reference books:

______________________________________________________________

67-9020 Case Number: 4-901193, 4-901029 (Challenge Timer)

Case Material: GPB (gold plated case, black bezel)

Dial Colour: Gold, black sub-dials

Dial Code: 901026

Black date & day wheels

Marked ’23 Jewels’

_____________________________________________________________

67-9038 Case Numbers: 4-901037, 4-901169

Case Material: SSB (stainless steel, black bezel)

Dial Colours: Blue, black or silver . Sub-dials: Blue & Black – silver sub-dials / Silver – black sub-dials

Dial Codes:  Silver – 901247 / Blue – 901042 / Black – 901034

Silver inner tachymeter ring

White date & day wheels (silver, blue & black dials) or black (blue & black dials)

Marked ’23 J’



Alternative dial designs, found in an original 1970s catalogue, possibly for the Australian market. Note the smaller crown used on these:

67-9038bluecatalog1970_zpsralqzjzt

67-9038blackcatalog1970_zpskoi48pol

Note that the applied CITIZEN logo and the printing beneath it (Chronograph/Automatic) are centre justified rather than left justified. Blue dial has black day and date wheels, with green sub-dial highlight colour:

67-9038bluedialcatalog1970_zpsgbhwtmky    67-9038blackdialcatalog1970_zpsjml9xpyl

(YouTube clip by ‘chiapettrip’)

______________________________________________________________

67-9054 Case Number: 4-901070

Case Material: SSB (stainless steel, black bezel)

Dial Colours: Green or Blue with black sub-dials



Dial Codes:  Green – 901903, Blue – 901123

White date & day wheels

Marked ’23 J’ or ’23 Jewels’

Tachymeter on bezel

________________________________________________________________

67-9071 Case Number: 4-901061

Case Material: BLS (Black, stainless steel top)

Dial Colours: Green or Gold with black sub-dials (first photo of gold version by ‘Martback’ – note replacement second hand, catalog pic courtesy of ‘Axel66’)



(Above photo is courtesy of ‘Scoobadoo’, showing gold dialed version on steel and black bracelet)

The Dial Codes: Green – 901115, Gold -901107

White date & day wheels

Marked ’23 J’

________________________________________________________________

67-9119 Case Number: 4-901045

Case Material: SSB (base metal, black bezel)

Dial Colour: Black, black sub-dials

Dial Code: 901077

White or black date & day wheels

Marked ’23 Jewels’ or ’23 J’

Inner rotating tachymeter ring

________________________________________________________________

67-9143 Case Numbers: 4-901134  & 4-901088 (Challenge Timer)

4-901134 (with acknowledgement to eBay seller):

http://www.himawari.sakura.ne.jp/~garaken/TEZ/TEZ-C3.htm

4-901088 (with credit to Mikko for image):



Case Material: BLG (black, gold bezel)

Dial Colour: Gold, with black sub-dials

Dial Code: 901026

Black or white date & day wheels

Marked ’23 Jewels’

________________________________________________________________

67-9151 Case Number: 4-901118 & 4-901142



Case Material: SS (all stainless steel )

Dial Colour: Shaded dark green to pale green centre with hexagonal pale green sub-dials. Three versions with different borders to the sub-registers – all yellow, white/yellow and orange/yellow. Yellow second hand with all yellow borders, otherwise orange second hand:



Dial Code: 901204

White date & day wheels

Marked ’23 Jewels’ or ’23J’ (yellow & white dial)

Octagonal case

________________________________________________________________

67-9178 Case Number: 4-901100

Case Material: BL (all black with fixed external bezel, metallic greenish gold tachymeter insert)

Dial Colours: White with white hexagonal sub-dials or black with black sub-dials (photo of black dial by Don Crotty)



Dial Codes: Black – 9012xx, White – 901221

White date & day wheels

Marked ’23 J’ or ’23 Jewels’

Sometimes known as the ‘Spaceman’

________________________________________________________________

67-9313 Case Number: 4-901207



Case Material: SS (all stainless steel with fixed external bezel, black tachymeter insert)

Dial Colours: White with white sub-dials or black with black sub-dials

Dial Codes:  White – 901271  /  Black – 901263

White date & day wheels

Marked ’23 Jewels’

Sometimes known as the ‘Speedy’, due to resemblance to the Omega Speedmaster

________________________________________________________________

67-9356 Case Number: 4-901223 (Challenge Timer)



(White dial image courtesy of AdamNYC, of the PMWF)

Case Material: SS (all stainless steel)

Dial Colours: White with black sub-dials or black with silver sub-dials

Dial Codes: White – 901280, black – 901298

Black date & day wheels (silver dial) or white wheels (black dial)

Marked ’23 Jewels’

Octagonal case

________________________________________________________________

Walter Wolf Special Edition



Model / Case Number:  8110-901231 (Black Dial/ Titanium Case);  8110-901258 (Gold Dial/Titanium Case);  8110-901240 (Black Dial / Black Case)

Case Material: TI (all titanium, with rotating  external compass bezel, black or dark blue insert), and Black (BL) over base metal

Dial Colour: Black, Pale Gold

Dial Code: 8110-901310 (Black) & not known (Gold)

Black date & day wheels – Black Dial,  White day and date – Gold Dial

Walter Wolf Formula 1 Racing Team special – one version has gold lettering on bezel insert. Dial marked Walter Wolf Racing & Water Resist 100

________________________________________________________________

The 8100A’s:

4-900014 Case Number: 4-900014 (NB: no model number given to this model)

Case Material: SSB (stainless steel, black bezel)

Dial Colour: Black, with black or silver sub-dial



Dial Codes:  Silver sub-dial – 900020 /  black sub-dial – 900038

Black date & day wheels

Marked ’23 Jewels’

________________________________________________________________

67-9551 Case Number: 4-900022

Case Material: BLS (black with stainless steel bezel)

Dial Colour: Black with black sub-dial

Dial Code: 900046

Black date & day wheels

Marked ’23 Jewels’

________________________________________________________________

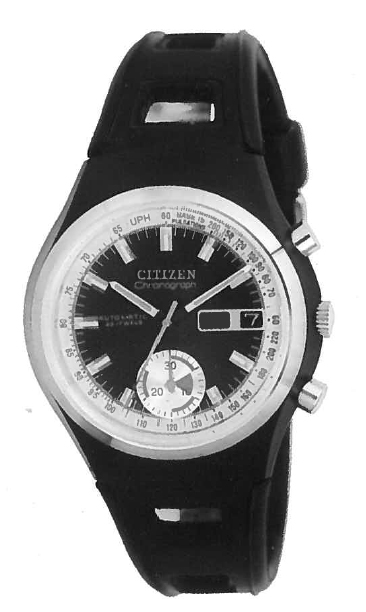

67-9577 Case Number: 4-900031

Case Material: BLS (black with stainless steel bezel)

Dial Colours: Black with black or silver sub-dial, blue with silver sub-dial



Dial Codes:  Black with black sub-dial – 900071 / Blue with silver sub-dial – 900062 /  Black with silver sub-dial – 900054

Black date & day wheels

Marked ’23 Jewels’

________________________________________________________________

67-9631 Case Number: 4-900049

Case Material: SS (all stainless steel)

Dial Colour: Blue with blue sub-dial

Dial Code: 900089

White date & day wheels

Marked ’23 Jewels’

________________________________________________________________

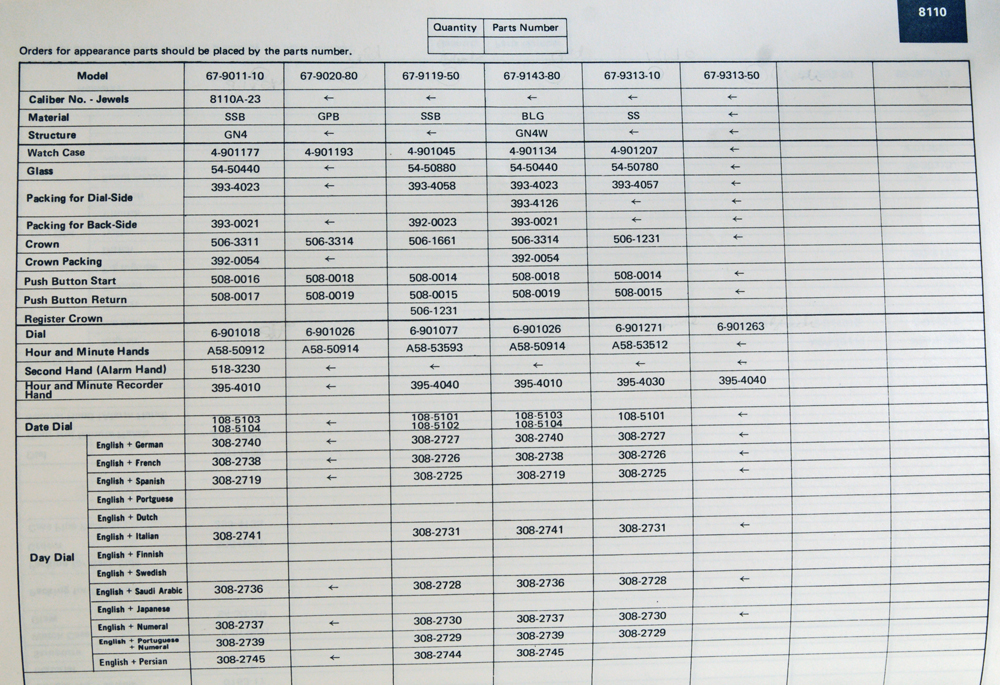

Case Parts Catalog, 1977

Here’s a scan of the relevant page from the 1977 ‘Original Appearance Parts Catalog’ – interestingly only 8110A models are listed, no 8100A’s. For information, the top row, which gives the model number, has additional numbers at the end, which I believe indicate the dial colour. So those with ‘-10’ at the end (eg. 67-9313-10) have silver or white dials, ‘-50’ have black dials, and ‘-80’ are gold dials:

________________________________________________________________

Schematics:

1. The Movement Family – this shows the two types and their dimensions:

2. Exploded View, Rotor Side:

3. Exploded View, Dial Side:

_________________________________________________________________

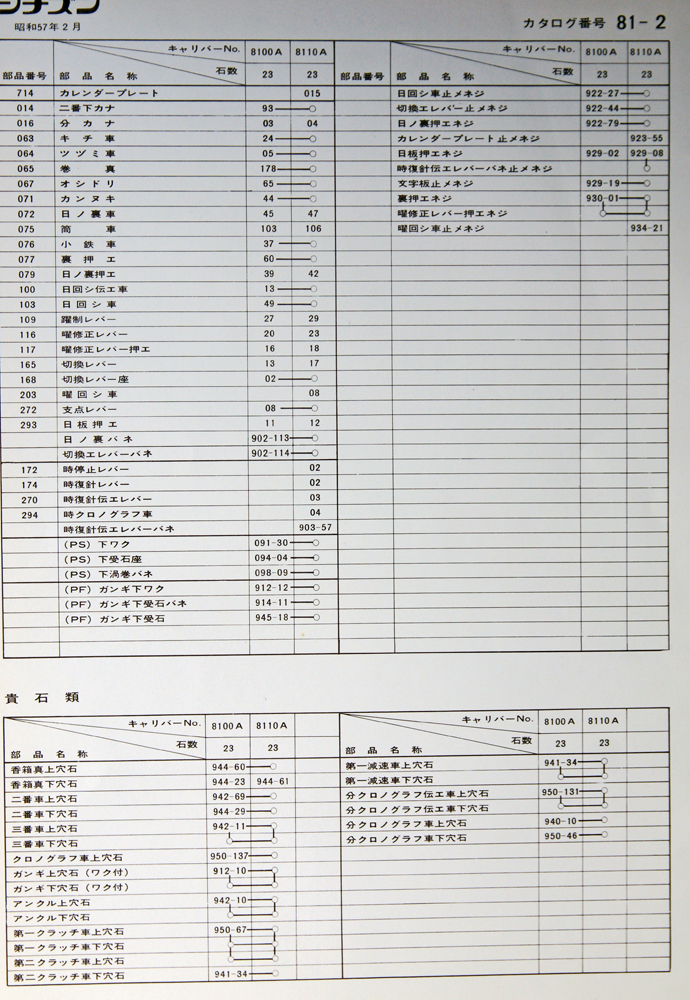

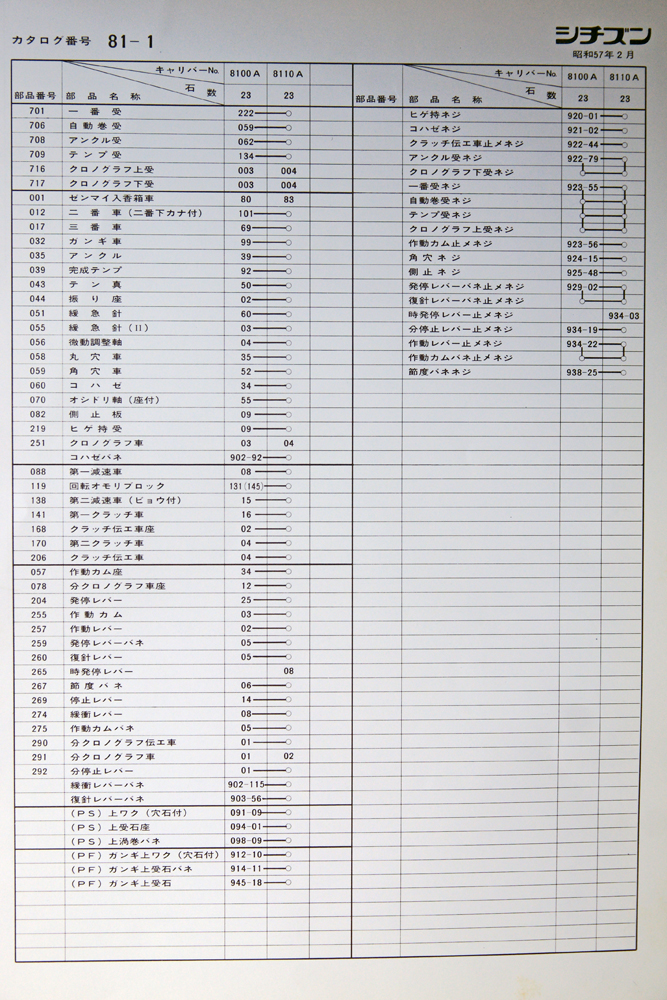

Parts List (shows shared parts and those for 8110A only):
